DISCOVER TI-KOLORIDE
3D-printed Titanium Gravel
We take up the challenge for those who like... to take up the challenge! We present DISCOVER – a gravel whose titanium frame was made in 3D technology. Geometry refined to the limits, lightweight and indestructible titanium, high-quality components. All this makes it difficult to stop once you get on this bike.
DISCOVER TI-KOLORIDE
Gallery
7 photos
Properties
- Frame: Made of titanium with 3D-printed connecting elements. The geometry was developed by Koloride specifically for long-distance rides.
- Fork: all-carbon, tapered, with bag mounts
- Internal routing: Internal cable routing
- Support: T47 85.5 mm
- Tire clearance: 700C x 45
- Derailleur hanger: UDH
- Weight of the bicycle: 7.3 kg and up
- Weight: frame: 1,420 g (size M); fork: 560 g
Frame Geometry
- K – Seat tube length
- E – Top tube length
- H – Head tube height (mm)
- J – Head tube angle
- I – Seat tube angle
- C – Chainstay length (mm)
- D – Wheelbase (mm)
- F – Stack (mm)
- G – Reach (mm)
S
168-173
M
172-178
L
177-186
XL
185-190
Geometry Details
Seat tube length (K)
S
440
M
470
L
500
XL
530
Upper tube length (E)
S
520
M
540
L
560
XL
580
Frame head height in mm (H)
S
125
M
140
L
155
XL
170
Head angle (J)
S
70,5°
M
71°
L
71°
XL
71,5°
Seat angle (I)
S
74°
M
73,5°
L
73°
XL
73°
Length of chain tubes in mm (C)
S
430
M
430
L
430
XL
430
Wheel base in mm (D)
S
1008
M
1019
L
1034
XL
1048
Stack in mm (F)
S
546
M
563
L
577
XL
593
Reach in mm (G)
S
363
M
374
L
384
XL
395
Support offset in mm
S
72
M
72
L
72
XL
72
| Frame geometry | S | M | L | XL |
|---|---|---|---|---|
| Seat tube length (K) | 440 | 470 | 500 | 530 |
| Upper tube length (E) | 520 | 540 | 560 | 580 |
| Frame head height in mm (H) | 125 | 140 | 155 | 170 |
| Head angle (J) | 70,5° | 71° | 71° | 71,5° |
| Seat angle (I) | 74° | 73,5° | 73° | 73° |
| Length of chain tubes in mm (C) | 430 | 430 | 430 | 430 |
| Wheel base in mm (D) | 1008 | 1019 | 1034 | 1048 |
| Stack in mm (F) | 546 | 563 | 577 | 593 |
| Reach in mm (G) | 363 | 374 | 384 | 395 |
| Support offset in mm | 72 | 72 | 72 | 72 |
Specification
Frame
- Koloride Frame: Made of titanium with components manufactured using 3D printing technology. Lightweight, durable, and excellent at dampening vibrations. Internal cable routing. Frame designed for mounting standard and UDH derailleurs
- Tire clearance: up to 700x45c
- Rigid axles: 142×12 mm rear, 100×12 mm front
- The Helm: TK1556P A-BOX Token
- Expander: TK299 Token
Wheels
- Wheels: ZIPP 303 XPRL S Tubeless Disc
Tires
- Tires: Pirelli Cinturato Gravel Hard TLR Classic. Size 40-622 (700 x 40C)
Fork
- Fork: Rigid, full-carbon with mounting holes, tapered steerer tube.
Saddle

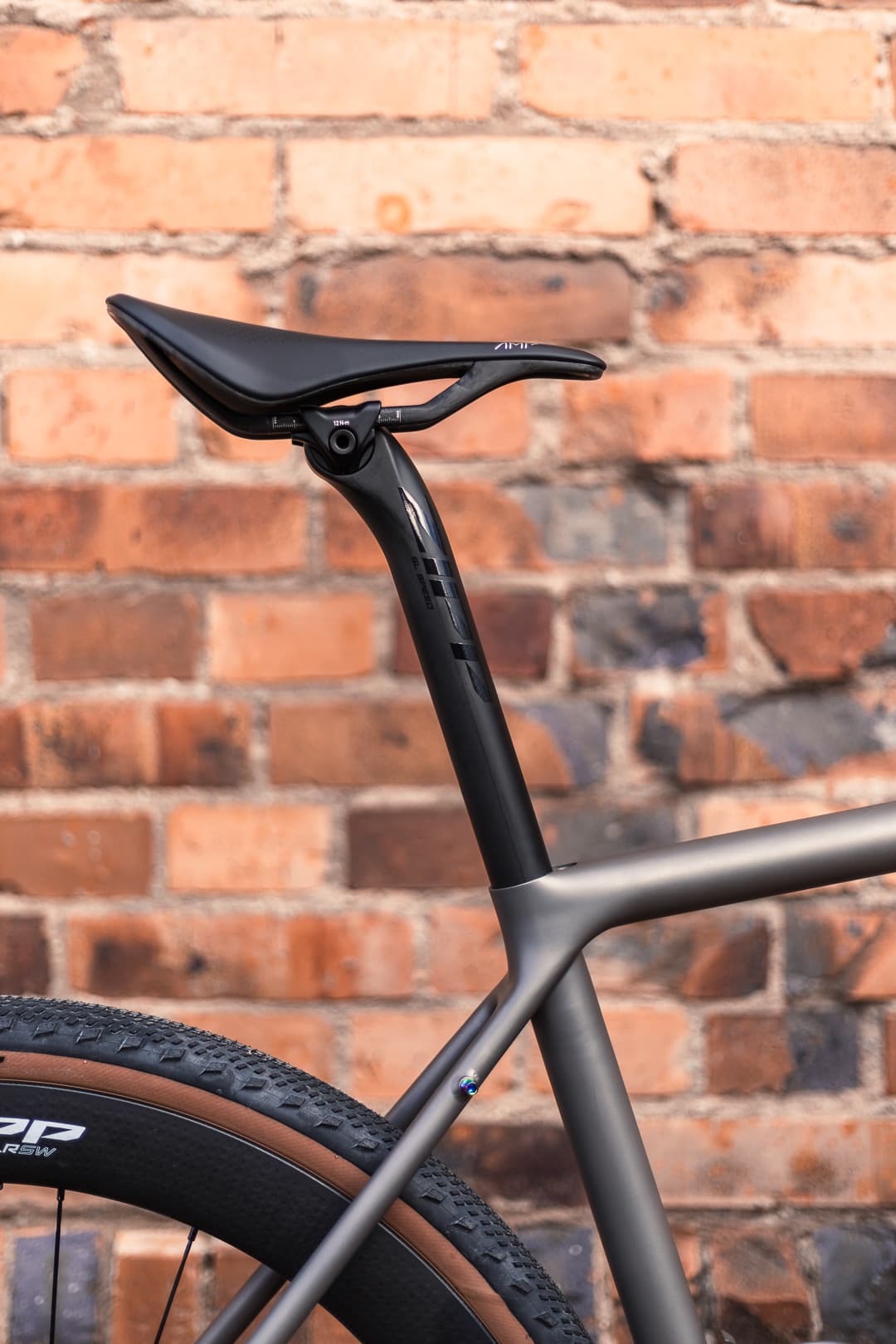

- Saddle: Fizik Vento Argo R5
Steering wheel
- Steering wheel: The Zipp Service Course SL 70 XPLR is an evolution of the lower-tier model, combining its undeniable advantages with a lighter weight. It also features a flatter top section. The perfect handlebar for long rides on varied terrain. Available in widths of 40, 42, 44, and 46 cm
Powertrain
- Door handle levers: SRAM RED AXS E1

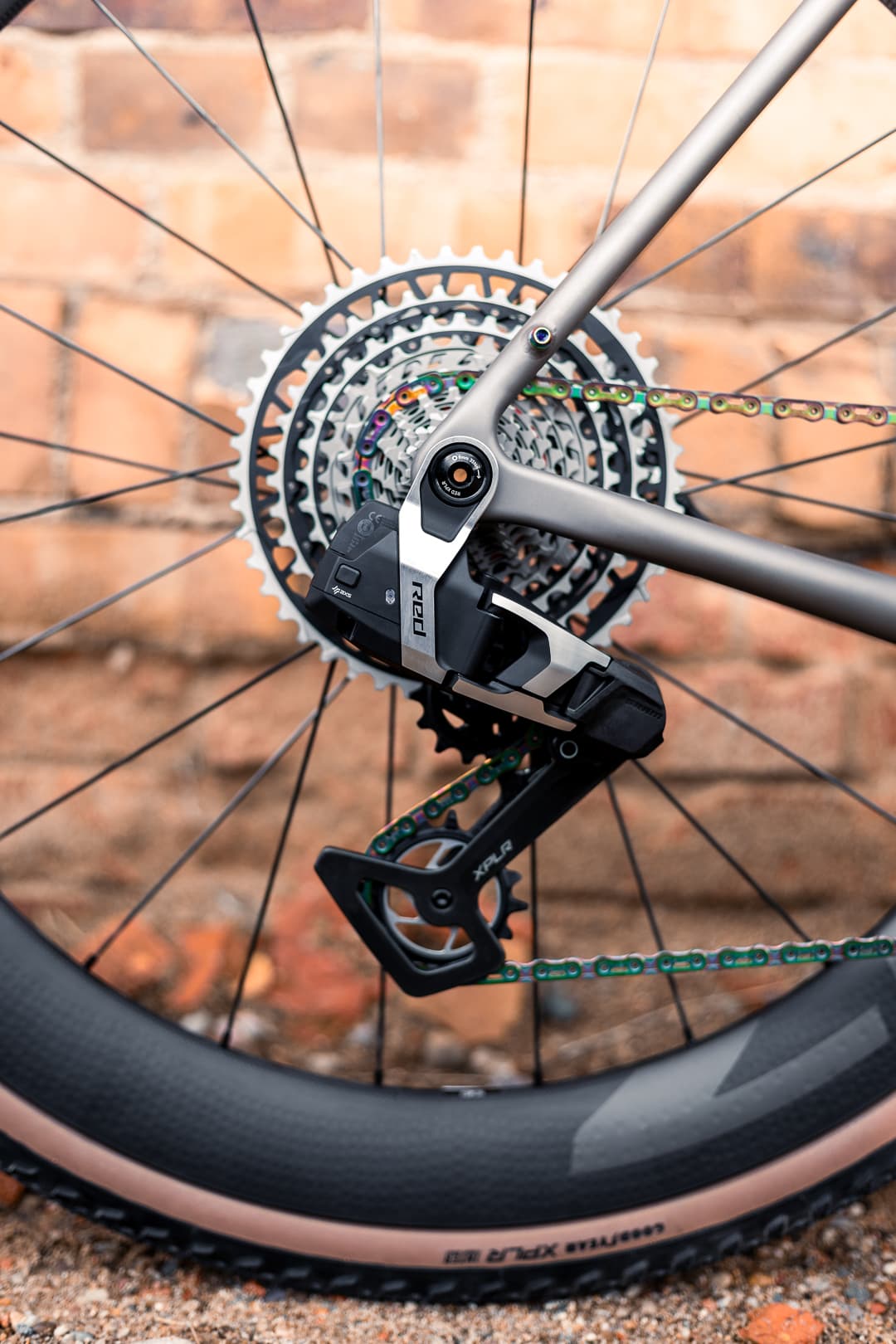

- Rear derailleur: SRAM RED AXS E1 XPRL MAX 46T

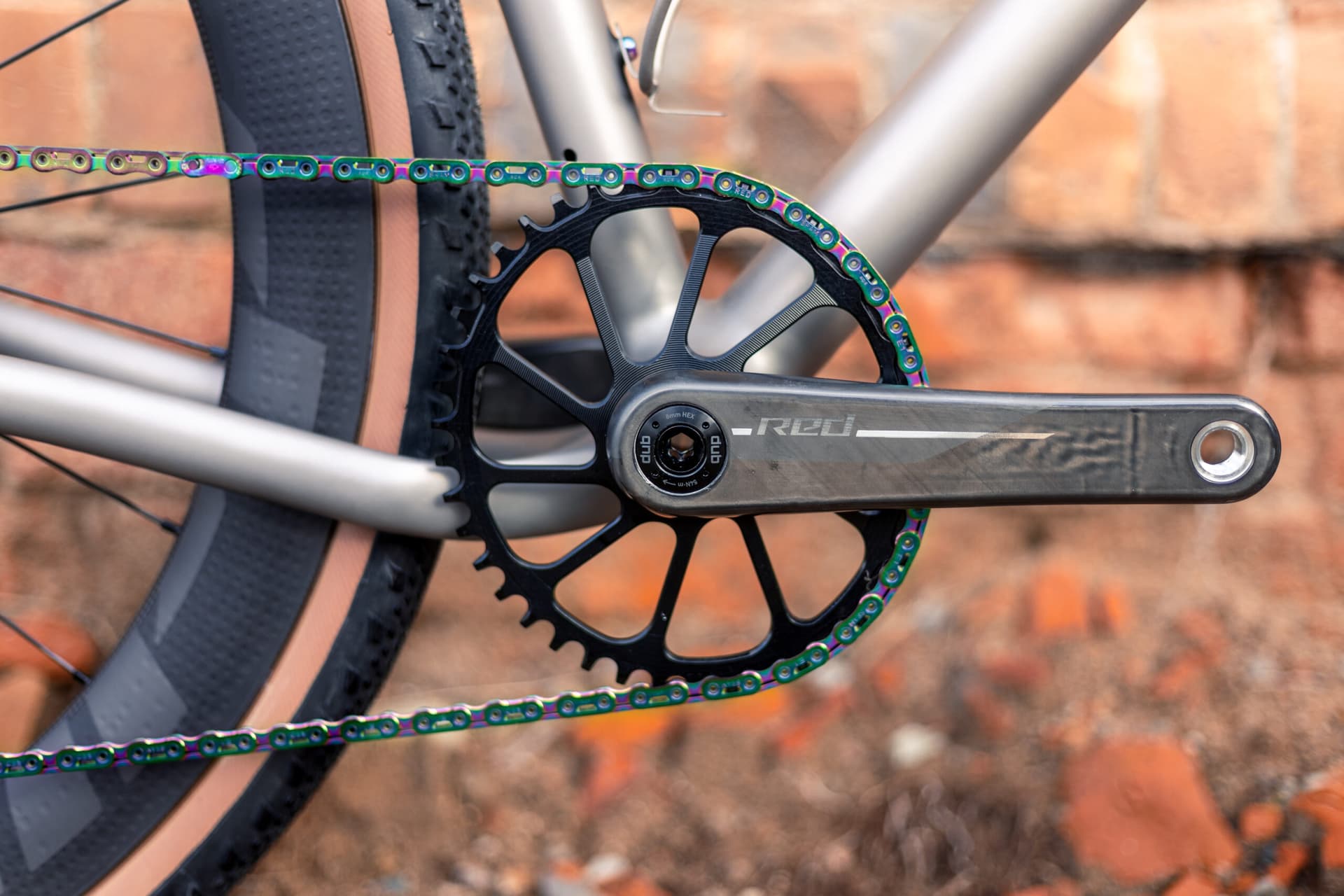

- Crank: SRAM RED XPLR 40T
- Cassette: SRAM RED XPLR AXS XG-1391 13-speed, 10-46
- Chain: SRAM RED Flattop with PowerLock clip
- Support: SRAM DUB T47 Road WIDE
- Brakes: SRAM RED E1
- Brake discs: SRAM Centerline XR 2-Piece Rounded Centerlock 160mm
Configuration is for reference only. Full customization available.
Go to Configurator
